User Manuals

  • U 8.76MBEN
First use or after a long period of non-use
Energy Saving
Coffee Preparation
Programming the water volume
Emptying the system before a period of non-use and en for frost protection, or before a repair
Reset to factory settings
Decaling
Cleaning
First use or after a long period of non-use
  1. Remove the water tank and capsule container. Adjust the cable length and store the excess under the machine.
  2. Insert the remaining cable in the guide under water tank left or right socket, depending on the position chosen for the water tank. Ensure machine is in the upright position.

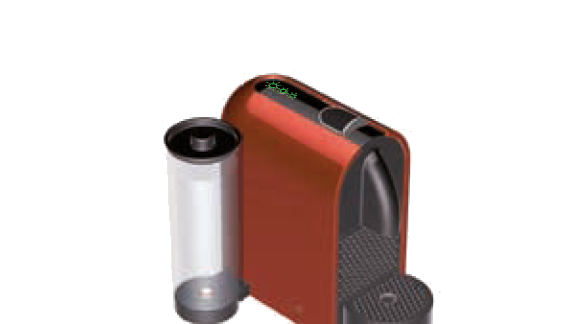

  3. Plug the machine into the mains.
  4. Rinse the water tank before filling it with potable water.
  5. Place the water tank on its arm, it is fixed with magnets. Insert the drip tray and the capsule container in position. For your safety, operate the machine only with drip tray and capsule container in position.
  6. Turn the machine ON by opening the slider and pushing it towards the back of the machine. Light will blink on one of the coffee touches: heating up for approximately 25 seconds. Steady light: ready.
  7. The machine can be turned into Off mode at any time by pushing and holding any touch control for more than 3 sec., confirmed by the other 2 controls flashing.

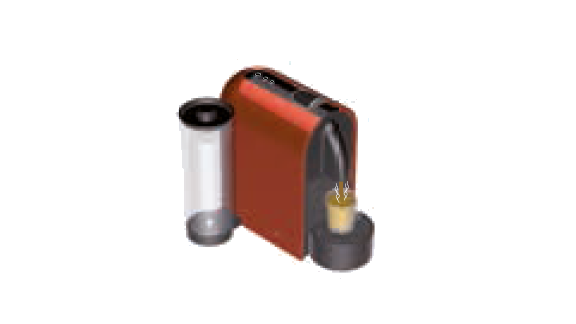

  8. Place a container under coffee outlet. Press the Lungo control. Close the slider to rinse the machine. Repeat three times.
  1. Remove the water tank and capsule container. Adjust the cable length and store the excess under the machine.
  2. Insert the remaining cable in the guide under water tank left or right socket, depending on the position chosen for the water tank. Ensure machine is in the upright position.
  3. Plug the machine into the mains.
  4. Rinse the water tank before filling it with potable water.
  5. Place the water tank on its arm, it is fixed with magnets. Insert the drip tray and the capsule container in position. For your safety, operate the machine only with drip tray and capsule container in position.
  6. Turn the machine ON by opening the slider and pushing it towards the back of the machine. Light will blink on one of the coffee touches: heating up for approximately 25 seconds. Steady light: ready.
  7. The machine can be turned into Off mode at any time by pushing and holding any touch control for more than 3 sec., confirmed by the other 2 controls flashing.
  8. Place a container under coffee outlet. Press the Lungo control. Close the slider to rinse the machine. Repeat three times.

Step 1 of 8

COFFEE PREPARATION
  1. Rinse then fill the water tank with potable water.
  2. Place a cup under the coffee outlet.
  3. Turn machine ON by either pushing the slider or touching the controls. Light will blink on one of the coffee touches: heating up for approximately 25 seconds. Steady light: ready.
  4. Select the Ristretto control (25 ml), Espresso (40 ml) or Lungo (110 ml) based on the chosen Grand Cru recommended cup size. You can select the desired coffee control even when the machine is still heating up. The coffee will then flow automatically when the machine is ready.
  5. The machine suggests the most frequently chosen cup size (based on last 11 coffees), Espresso as factory setting. You can change this by selecting any other control.
  6. Completely open the slider and insert a Nespresso capsule.
  7. Close the slider.
  8. Preparation will stop automatically. The capsule will be automatically ejected.
  9. To stop the coffee flow before touch the lit control or move the slider towards the back of the machine until it stops.
  10. To manually top up your coffee, touch any of the controls within 4 seconds from end of preparation and touch lit control again to stop.
  11. To change the selected cup size during brewing select the new desired control. The machine will stop immediately if coffee volume extracted is larger than new desired control.
  12. To accommodate a milk recipe glass, shift the cup support to either the left or right side magnets. The capsule will be automatically ejected.
  1. Remove the water tank and capsule container. Adjust the cable length and store the excess under the machine.
  2. Insert the remaining cable in the guide under water tank left or right socket, depending on the position chosen for the water tank. Ensure machine is in the upright position.
  3. Plug the machine into the mains.
  4. Rinse the water tank before filling it with potable water.
  5. Place the water tank on its arm, it is fixed with magnets. Insert the drip tray and the capsule container in position. For your safety, operate the machine only with drip tray and capsule container in position.
  6. Turn the machine ON by opening the slider and pushing it towards the back of the machine. Light will blink on one of the coffee touches: heating up for approximately 25 seconds. Steady light: ready.
  7. The machine can be turned into Off mode at any time by pushing and holding any touch control for more than 3 sec., confirmed by the other 2 controls flashing.
  8. Place a container under coffee outlet. Press the Lungo control. Close the slider to rinse the machine. Repeat three times.

Step 1 of 12

Emptying the system before a period of non-use and en for frost protection, or before a repair

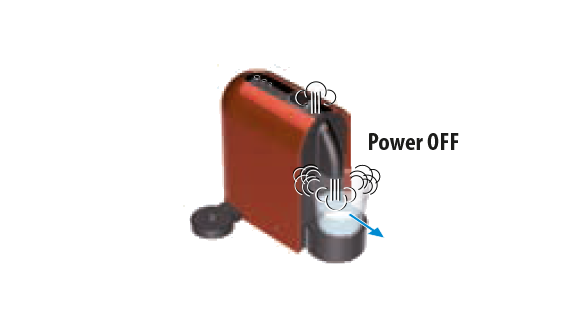

  1. To note, the machine remains blocked for 10 minutes after emptying! Remove the water tank. Place a container under the coffee outlet.
  2. Open slider. Press and hold the Ristretto & Lungo controls together for at least 6 sec. The other control flash for confirmation. Then close the slider to start procedure.
  3. Machines turns to Off mode automatically when empty.
  1. Remove the water tank and capsule container. Adjust the cable length and store the excess under the machine.
  3. Plug the machine into the mains.

Step 1 of 3

First use or after a long period of non-use
  1. Empty the drip tray and the used capsule container.
  2. Fill the water tank with 1 unit of Nespresso descaling liquid and add 0.5 L of water.
  3. Place a container (minimum volume: 0.6 L) under the coffee outlet.
  4. Activate the machine by pushing one of the cup selection touches.
  5. Blinking light: heating up Steady light: ready
  6. To enter the descaling mode, at slider closed push all the 3 controls simultaneously for at least 3 sec. A short beep will confirm it. Open the slider.
  7. Push all the 3 controls simultaneously for at least 3 sec. A short beep will confirm it. The control area will start blinking quickly.
  8. Close the slider to start descaling. Machine stops when water tank is empty.
  9. Refill the water tank with the used descaling solution collected in the container and touch any control to repeat the procedure.
  10. Empty and rinse the water tank, capsule container, drip tray and cup support thoroughly. Fill water tank with potable water
  11. When ready, touch any control to rinse the machine. Machine will stop when done.
  12. To exit the descaling mode, push all the 3 controls simultaneously for at least 3 sec. A short beep will confirm this. The machine is now ready for use.
  1. Remove the water tank and capsule container. Adjust the cable length and store the excess under the machine.
  3. Plug the machine into the mains.
  4. Plug the machine into the mains.
  5. Plug the machine into the mains.
  6. Plug the machine into the mains.
  7. Plug the machine into the mains.
  8. Plug the machine into the mains.
  9. Plug the machine into the mains.
  10. Plug the machine into the mains.
  11. Plug the machine into the mains.
  12. Plug the machine into the mains.

Step 1 of 12

ENERGY SAVING MODE
  1. Automatic Off mode: the machine will turn into Off mode automatically after 9 minutes of non-use.
  2. The machine can be turned into Off mode at any time by pushing any control for more than 3 sec., confirmed by the other 2 controls flashing.
  3. To change automatic OFF mode from 9 to 30 minutes, when slider is closed press and hold both the Lungo and Ristretto controls for more than 3 sec. Espresso control flashes once for confirmation. To revert back to 9 minutes, repeat the same procedure. Espresso control flashes 3 times for confirmation.

Step 1 of 3

PROGRAMMING THE WATER VOLUME
  1. Any control can be programmed. Completely open the slider and insert a Nespresso capsule.
  2. Touch and hold the control while closing the slider. Release control when desired volume is reached. The other 2 controls flash for confirmation. Water volume level is now stored in the control used during programming.

Step 1 of 2

RESET TO FACTORY SETTINGS
  1. Press and hold the Espresso & Lungo controls together for at least 4 sec. The other control flashes for confirmation.

Step 1 of 1

Cleaning
  1. Empty the drip tray and the used capsule container.
  2. Clean the coffee outlet regularly with a damp cloth.
  3. Never immerse the appliance or part of it in water.
  4. Do not use any strong or abrasive solvent, sponge or cream cleaner. Do not put in the dishwasher.

Step 1 of 4

First use or after a long period of non-use
First use or after a long period of non-use
No light on the controls.
The machine has turned to Off mode automatically; touch one of the controls or push the slider. Check the mains: plug, voltage, fuse.
No coffee, no water.
Check the water tank, if empty, fill with potable water. Descale it if necessary.
Coffee is not hot enough.
Preheat cup. Descale if necessary.
The slider does not close completely or the machine doesn‘t start brewing.
Empty the capsule container. Check that no capsule is blocked inside the machine.
Leakage or unusual coffee flow.
Check that the water tank is correctly positioned.
Lights flash alternatively from back to front.
Empty the used capsule container and check no capsules are blocked Then touch any control. If problem persists, call the Nespresso Club.
Lights flash alternatively from front to back.
Fill the water tank If problem persists, call the Nespresso Club.
Lights flash quickly.
Exit descaling procedure, push all the 3 controls simultaneously for at least 3 sec. Disconnect plug from the mains and reconnect after 10 sec. If problem persists, call the Nespresso Club.
No coffee, water just comes out (despite inserted capsule).
Pull the slider to ensure it is closed. If problem persists, call the Nespresso Club.
Water or coffee flow does not stop pushing any control.
Move gently the slider towards the back of the machine to stop the flow.
Machine turns to Off mode.
To save energy the machine will turn to Off mode after 9 minutes of non-use. See paragraph on "Energy saving concept".
