MACHINE ASSISTANCE

Essenza Mini

Select another machine

User Manuals

  • Essenza Mini 2.10MBEN
First use or after a long period of non-use
Energy saving mode
Coffee Preparation
Programming the water volume
Emptying the system before a period of non-use and en for frost protection, or before a repair
Reset to factory settings
Descaling
Cleaning

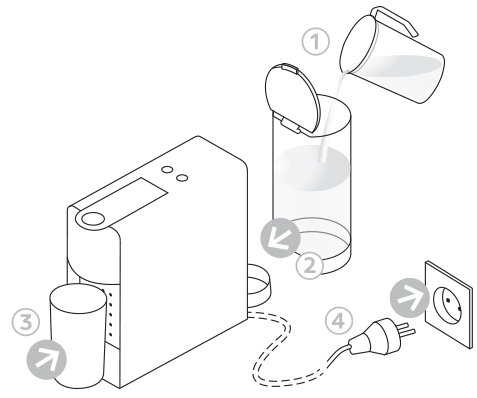

First use or after a long period of non-use
  1. Rinse the water tank before filling with potable water. Place a container
  2. To turn the machine ON, press either the Espresso or Lungo button. Blinking Lights: heating up (25 seconds). Steady Lights: ready
  3. Press the Lungo button to rinse the machine. Repeat 3 times.
  4. To turn the machine off before automatic Auto Off mode, press both the Espresso and Lungo buttons simultaneously.

Step 1 of 4

Coffee Preparation

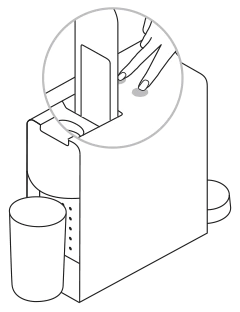

  1. To turn the machine ON, press either the Espresso or Lungo button. Blinking Lights: heating up (25 seconds). Steady Lights: ready

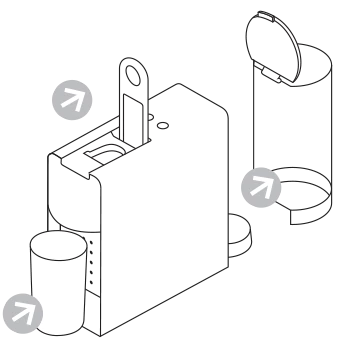

  2. Lift the lever completely and insert the capsule.
  3. Close the lever and place a cup under the coffee outlet.
  4. Press the Espresso (40 ml) or the Lungo (110 ml) button to start. Preparation will stop automatically. To stop the coffee flow or top up your coffee, press again.
  5. Remove the cup. Lift and close the lever to eject the capsule into the used capsule container.

Step 1 of 5

Emptying the system before a period of non-use and en for frost protection, or before a repair

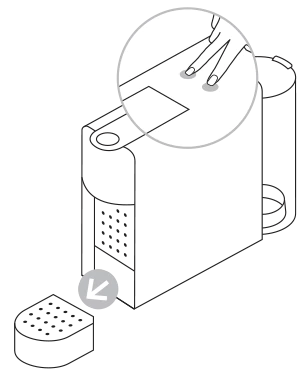

  1. To enter the emptying mode, press both the Espresso and Lungo buttons to turn the machine off.
  2. Remove the water tank and open the lever. Place a container under the coffee outlet.
  3. Press both the Espresso and Lungo buttons for 5 seconds. Both LEDs blink alternatively.
  4. Emptying process begins. Machine switches off automatically when procedure is finished.

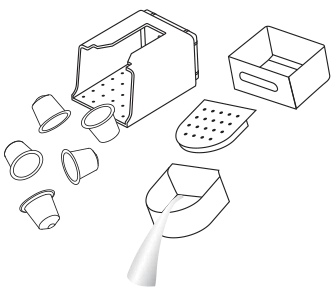

  5. Close the lever. Empty and clean the used capsule container, the drip tray and the drip base.

Step 1 of 4

Descaling
  1. Duration approximately 15 minutes. Lift and close the lever to eject the capsule into the used capsule container.
  2. Empty the drip tray, drip base and used capsule container.
  3. Pour 1 Nespresso descaling liquid sachet into the water tank. Fill the water tank up to the 0.6 L line with potable water.
  4. Place a container (min.volume 1 L) under the coffee outlet.
  5. To enter the descaling mode, while the machine is turned on, press both the Espresso and Lungo buttons for 5 seconds.
  6. Both LEDs blink.
  7. Press the Lungo button and wait until the water tank is empty.
  8. Refill the water tank with the used descaling solution collected in the container and repeat steps 4 and 7.
  9. Empty and rinse the water tank. Fill with fresh potable water.
  10. When ready, repeat steps 4 and 7 to now rinse the machine. Repeat twice.
  11. To exit the descaling mode, press both the Epresso and Lungo buttons for 5 seconds.
  12. Empty the drip base.

Step 1 of 12

Energy saving mode
  1. This machine is equipped with an energy saving feature. To change this setting: With machine being turned off, press and hold the Espresso button for 5 seconds. The Espresso button will blink to indicate the current setting.
  2. The machine will automatically enter Auto Off mode after 9 minutes. To change this setting press the Espresso button: One time for Auto Off mode after 30 minutes. One more time for Auto Off mode after 9 minutes.
  3. To exit the energy saving mode press the Lungo button for 5 seconds.
  1. Remove the water tank and capsule container. Adjust the cable length and store the excess under the machine.
  2. Insert the remaining cable in the guide under water tank left or right socket, depending on the position chosen for the water tank. Ensure machine is in the upright position.
  3. Plug the machine into the mains.
  4. Rinse the water tank before filling it with potable water.
  5. Turn the machine ON by opening the slider and pushing it towards the back of the machine. Light will blink on one of the coffee touches: heating up for approximately 25 seconds. Steady light: ready.
  6. Turn the machine ON by opening the slider and pushing it towards the back of the machine. Light will blink on one of the coffee touches: heating up for approximately 25 seconds. Steady light: ready.

Step 1 of 3

Programming the water volume
  1. Turn the machine on and wait for it to be in ready mode(steady lights). Fill the water tank with fresh potable water and insert the capsule.
  2. Place a cup under the coffee outlet. Press and hold the Espresso or Lungo button. Release button once the desired volume is served. LED will blink fast 3 times to confirm new setting. Water volume level is now stored.

Step 1 of 2

Reset to factory settings
  1. Factory settings: Espresso cup: 40 ml, Lungo cup: 110 ml; Auto Off mode: 9 mins. With machine turned off, press and hold down the Lungo button for 5 seconds.
  2. LEDS will blink fast 3 times to confirm machine has been reset to factory settings.
  3. LEDs will then continue to blink normally, as heating up, until ready. Steady Lights: ready

Step 1 of 3

Cleaning
  1. Empty the drip tray, the drip base and the capsule container every day. Also remove the water tank with its lid and clean them all with odorless detergent and rinse with warm / hot water.
  2. Dry with a fresh and clean towel, cloth or paper and reassemble all parts. Clean the coffee outlet and inside the machine regularly with a damp cloth.

Step 1 of 2

CLIP/UNCLIP YOUR SIDE PANELS
  1. Unplug the machine and remove the water tank and maintenance unit.
  2. Take the Pixie Clips machine as shown in the picture.
  3. Push with the thumb and pull with the other hand to unclip your side panel as shown in the picture.
  4. Position the new side panel, arrows pointing up.
  5. Clip the new side panel as shown in the picture. Ensure the panel is properly secured.
  6. Come and discover a wide range of side panels to syle your machine in your Nespresso Boutiques or online at Nespresso.com

Step 1 of 6

TO UNCLIP YOUR PANELS WITH THE DEDICATED NESPRESSO KEY
  1. Unplug the machine and remove the water tank and maintenance unit.
  2. Place the machine on the side on a clean and smooth surface to avoid damaging your panel.
  3. >Use the Nespresso key in the four holes to unclip the panels.
  4. Unclip the panel by rotating the Nespresso key as shown in the picture.
  5. Remove the panel.

Step 1 of 5

Descaling
TO UNCLIP YOUR PANELS WITH THE DEDICATED NESPRESSO KEY
CLIP/UNCLIP YOUR SIDE PANELS
First use or after a long period of non-use
Coffee Preparation
Emptying the system before a period of non-use and en for frost protection, or before a repair
Programming the water volume
Cleaning
No light on the controls.
The machine has turned to Off mode automatically; touch one of the controls or push the slider. Check the mains: plug, voltage, fuse.
No coffee, no water.
Check the water tank, if empty, fill with potable water. Descale it if necessary. Lift the lever. Press one coffee button and wait until water comes out.
Coffee is not hot enough.
Preheat cup. Descale if necessary.
Leakage or unusual coffee flow.
Check that the water tank is correctly positioned.
Lights flash irregularly.
Call the Nespresso Club. Exit descaling procedure (see paragraph on descaling).
Front light is red.
Water tank is empty or needs to be cleaned.
Pannel cannot be clipped.
Ensure orientation as indicated per the arrows inside the panel. Start to clip from the top. In case the panel still does not clip, call the Nespresso Club.
No coffee, water just comes out (despite inserted capsule).
In case of difficulties, call the Nespresso Club.
Machine switches itself off.
To save energy the machine will turn itself off after 9 minutes of non use. See paragraph on «Energy saving concept».
